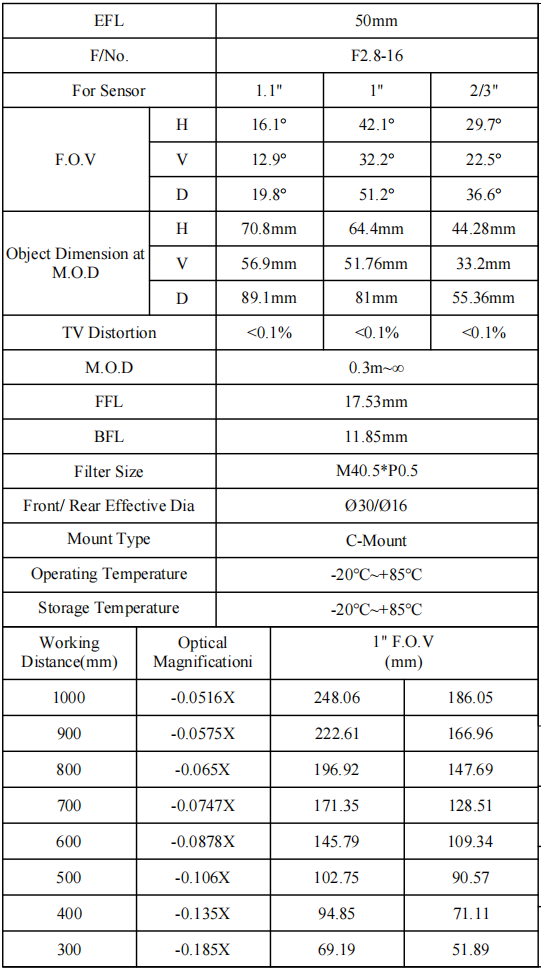

Model |
CH668A |
|||
|
Type |
Machine vision Lens |
M.O.D |
0.3m~∞ |
|
|
EFL |
50mm |
Mount Type |
C |
|
|
F.NO |
F2.8-16 |
Dimension Figure |
ф46.4*L59.3mm |
|
|
Resolution |
25MP |
FFL |
17.53mm |
|
|
Image Format |
1.1″ |
Weight |
— |
|
|
BFL |
11.85mm |
Iris Operation |
Manual |
|
|
For Sensor |
1.1″ |
Zoom Operation |
Fixed |
|
|
F.O.V |
Horizontal |
16.1° |
Focus Operation |
Manual |
|
Vertical |
12.9° |
Operating Temperature |
-20°~+85° |
|
|
Diagonal |
19.8° |
Storage Temperature |
-20°~+85° |
|
|
TV Distortion |
<0.1% |
Image Circle |
Ø18.0mm | |
This product was successfully added to cart!
1.1″ Machine Vision Lenses
Products
Product Detail
Product Tags
| Model | Sensor Format | Focal Length(mm) | FOV (H*V*D) | TTL(mm) | IR Filter | Aperture | Mount | Unit Price | ||
|---|---|---|---|---|---|---|---|---|---|---|
| MORE+LESS- | CH668A | 1.1" | 50mm | 16.1°*12.9°*19.8° | / | / | F2.8-16 | C | Request Quote |
|

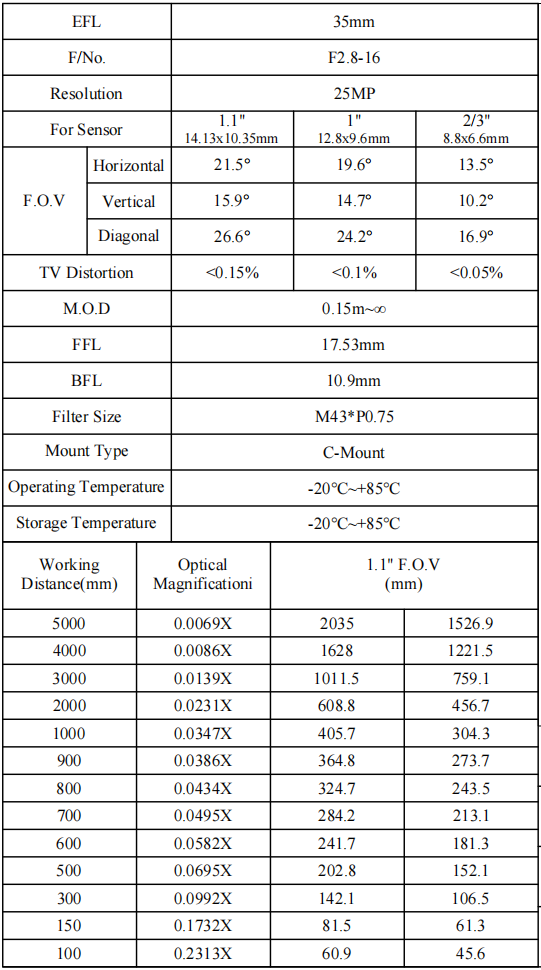

| MORE+LESS- | CH667A | 1.1" | 35mm | 21.5°*15.9°*26.6° | / | / | F2.8-16 | C | Request Quote |
|

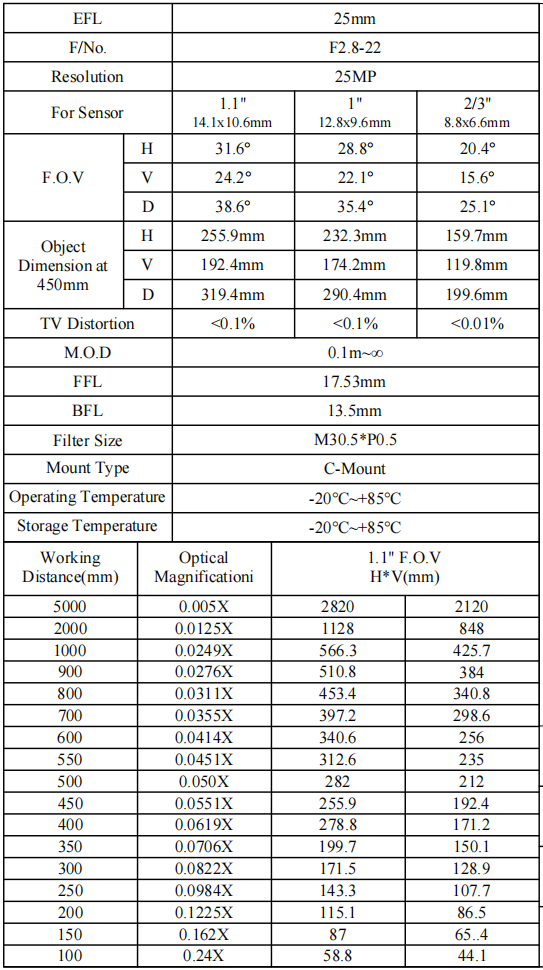

| MORE+LESS- | CH666A | 1.1" | 25mm | 31.6°*24.2°*38.6° | / | / | F2.8-22 | C | Request Quote |
|

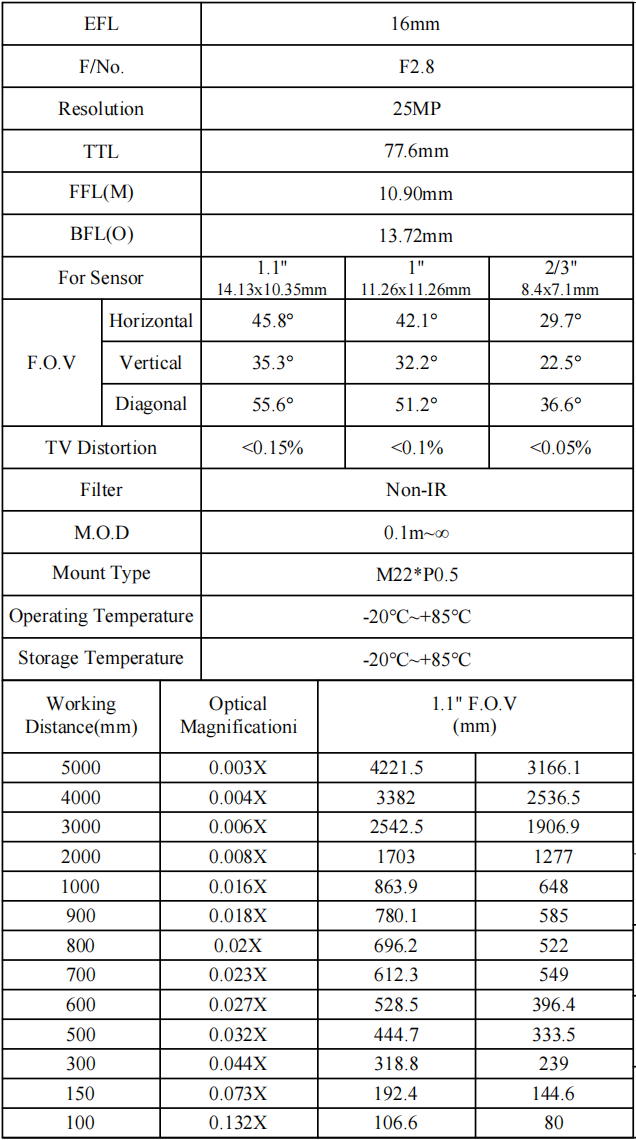

| MORE+LESS- | CH665A | 1.1" | 16mm | 45.8°*35.3°*55.6° | / | / | F2.8-22 | C | Request Quote |
|
| MORE+LESS- | CH664A | 1.1" | 12mm | 60.66°*46.5°*71.3° | / | / | F2.8-22 | C | Request Quote |
|
| MORE+LESS- | CH663A | 1.1" | 8mm | 82.8°*65.8°*94.4° | / | / | F2.8-22 | C | Request Quote |
|
| MORE+LESS- | CH607A | 1.1" | 75mm | 10.8°*8.1°*13.4° | / | / | F1.8-16 | C/CS | $220Request Quote |
|
| MORE+LESS- | CH606A | 1.1" | 50mm | 15.9°*11.9°*19.9° | / | / | F2.8-22 | C/CS | $210Request Quote |
|
| MORE+LESS- | CH605A | 1.1" | 35mm | 22.6°*17°*28.3° | / | / | F2.8-22 | C/CS | $210Request Quote |
|
| MORE+LESS- | CH604A | 1.1" | 25mm | 30.4°*23°*37.6° | / | / | F2.8-22 | C/CS | $210Request Quote |
|
| MORE+LESS- | CH603A | 1.1" | 16mm | 47.8°*36°*55.4° | / | / | F2.8-16 | C/CS | $210Request Quote |
|
| MORE+LESS- | CH602A | 1.1" | 12mm | 57°*45°*66.7° | / | / | F2.8-16 | C/CS | $210Request Quote |
|
| MORE+LESS- | CH601A | 1.1" | 8mm | 84.8°*68°*98.4° | / | / | F1.4-16 | C/CS | $275Request Quote |
|
1.1″ machine vision lenses can be used with image sensor IMX294. The IMX294 image sensor is designed to meet the needs of the security segment. The new flagship model size 1.1″ is optimized to be used in security cameras and industrial applications. The back-illuminated CMOS Starvis sensor achieves a 4K resolution with 10.7 megapixels. The extraordinary low-illumination performance is achieved by the large 4.63 µm pixel size . This makes IMX294 ideal for applications with low incident light, eliminating the need of additional illumination. With a frame rate of 120 fps at 10 bits and a 4K resolution, the IMX294 is ideal for high-speed video applications.
ChuangAn Optics 1.1” machine vision lenses features: High resolution inspection.
The primary uses for machine vision are imaging-based automatic inspection and sorting and robot guidance. Optical sorting is an idea that first came out of the desire to automate industrial sorting of agricultural goods like fruits and vegetables.
ChuangAn Optics 1.1″ machine vision lenses can be used in agricultural color sorting: non-destructive testing of fruit and vegetable quality, tobacco leaf quality testing, application in grain identification and grading, application in agricultural machinery.
Monochromatic cameras detect shades of gray from black to white and can be effective when sorting products with high-contrast defects.
Coupled with intelligent software, sorters that feature cameras are capable of recognizing each object’s color, size and shape; as well as the color, size, shape and location of a defect on a product. Some intelligent sorters even allow the user to define a defective product based on the total defective surface area of any given object.
-
