一、What Lens is used in CCTV Camera?
CCTV cameras can use various types of lenses depending on their intended application and desired field of view. Here are some common types of lenses used in CCTV cameras:

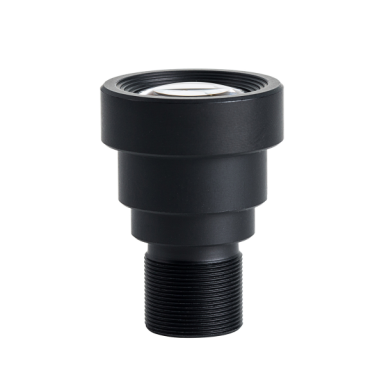

Fixed Lens: These lenses have a fixed focal length and cannot be adjusted. They are used for applications where the field of view does not need to be changed.

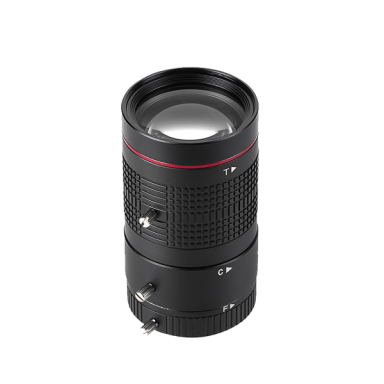

Varifocal Lens: These lenses allow the user to adjust the focal length and hence the field of view. They are useful when the camera is installed in a location where the distance between the camera and the subject can vary.

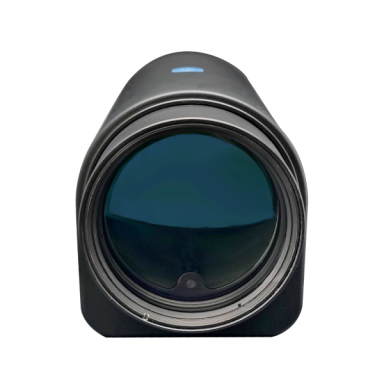

Zoom Lens: These lenses are similar to varifocal lenses but offer a more extensive range of focal length adjustment. They allow the user to zoom in or out on the subject without moving the camera.

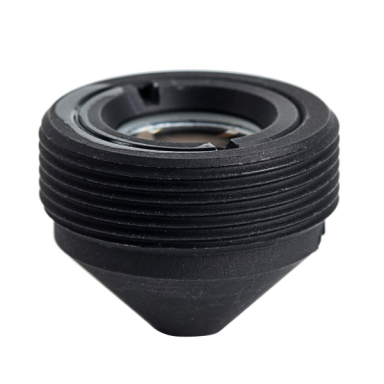

Pinhole Lens: These lenses have a very small aperture, which allows the camera to be concealed within a small object or wall cavity.
The selection of the lens depends on the specific needs of the application, such as the distance to the subject, lighting conditions, and the desired field of view.
二、What Does CCTV Camera Lens Do?
The lens is one of the most important components of a CCTV camera, as it is responsible for capturing and focusing light onto the camera’s image sensor. The lens determines the field of view and the amount of light that enters the camera, which can have a significant impact on the quality and clarity of the resulting image.
The lens works by bending the light rays that pass through it, so they converge at a focal point on the image sensor. The distance from the lens to the image sensor, as well as the curvature of the lens, determines the focal length and the angle of view of the camera.
A CCTV camera lens can be fixed or adjustable, depending on the specific needs of the application. Fixed lenses have a set focal length and field of view, while adjustable lenses, such as varifocal or zoom lenses, can be adjusted to change the focal length and the field of view.
In summary, the CCTV camera lens plays a critical role in capturing high-quality images and video footage. By controlling the amount of light that enters the camera and the angle of view, the lens helps ensure that the camera captures the intended subject matter with the desired level of detail and clarity.
三、How to Choose a CCTV Camera Lens?
Choosing the right CCTV camera lens is essential to getting the best possible image quality for your security system. Here are some factors to consider when selecting a CCTV lens:

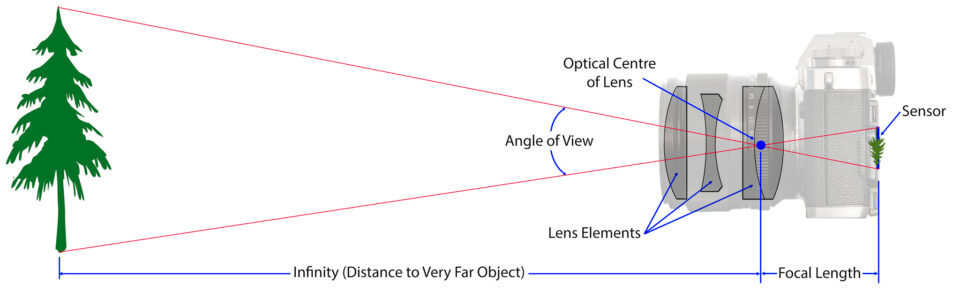

Focal Length: The focal length of the lens determines the camera’s field of view, or how much of the scene the camera can capture. If you need to monitor a large area, a wide-angle lens with a short focal length will be required. For monitoring a specific area, a narrow-angle lens with a longer focal length is more suitable. You can use online calculators to determine the appropriate focal length for your application based on the distance to the subject and the desired field of view.

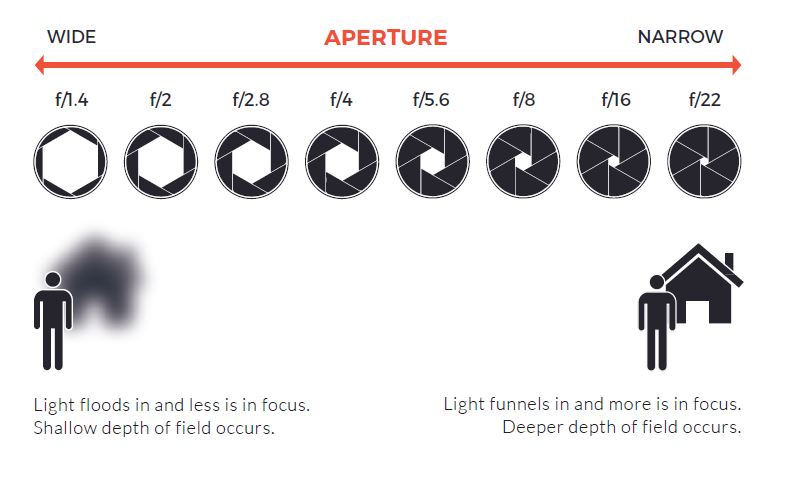

Aperture: The aperture is the size of the opening in the lens that allows light to enter the camera. A larger aperture (lower f-number) will allow more light to enter the camera, resulting in brighter images in low light conditions. However, a larger aperture may result in shallower depth of field, which can cause objects in the foreground or background to appear blurry.
Compatibility: Ensure that the lens is compatible with your camera model and sensor size. Different cameras may have different mounting types, and not all lenses are compatible with all camera models.
Image Quality: Choose a lens with good image quality, which will ensure that the camera captures clear, detailed images.
Budget: The cost of security camera lenses varies depending on the focal length, aperture, and image quality. Determine your budget and choose a lens that meets your requirements and falls within your budget.
In summary, when choosing a CCTV camera lens, consider the focal length, aperture, compatibility, image quality, and budget to ensure that you get the best possible image quality for your security system.
