The M12 fisheye lens, also known as a fisheye lens with an M12 standard mount, features an ultra-wide field of view and a compact design. It is particularly suitable for applications where space is limited and coverage without blind spots is required, and plays an important role in automated production lines.
Overall, the specific applications of M12 fisheye lenses in automated production lines include the following aspects:
1.Panoramic monitoring of the production line
M12 fisheye lenses feature a wide field of view, typically exceeding 180°—with some models reaching over 220°—enabling a single camera to cover a vast production area and fulfill panoramic surveillance requirements.
In automated production line monitoring, the use of an M12 fisheye lens allows for the simultaneous capture of panoramic views encompassing robotic arms, conveyor belts, or workstations, thereby eliminating surveillance blind spots.
By covering multiple critical monitoring points with a single lens, the system is simplified, and both the installation costs and complexity associated with the cameras are significantly reduced.
2.Robot vision system
In robotic vision systems, M12 fisheye lenses are typically mounted at the robot’s wrist or near its base, providing a panoramic field of view of 180° or 360°. This enables the robotic arm to acquire more comprehensive environmental information, assisting the robot in identifying and locating all objects within its workspace, successfully performing obstacle avoidance and grasping tasks, and thereby enhancing production efficiency.
Such lenses ensure that the robot can accurately perceive the positions and distances of surrounding objects, even within complex environments.

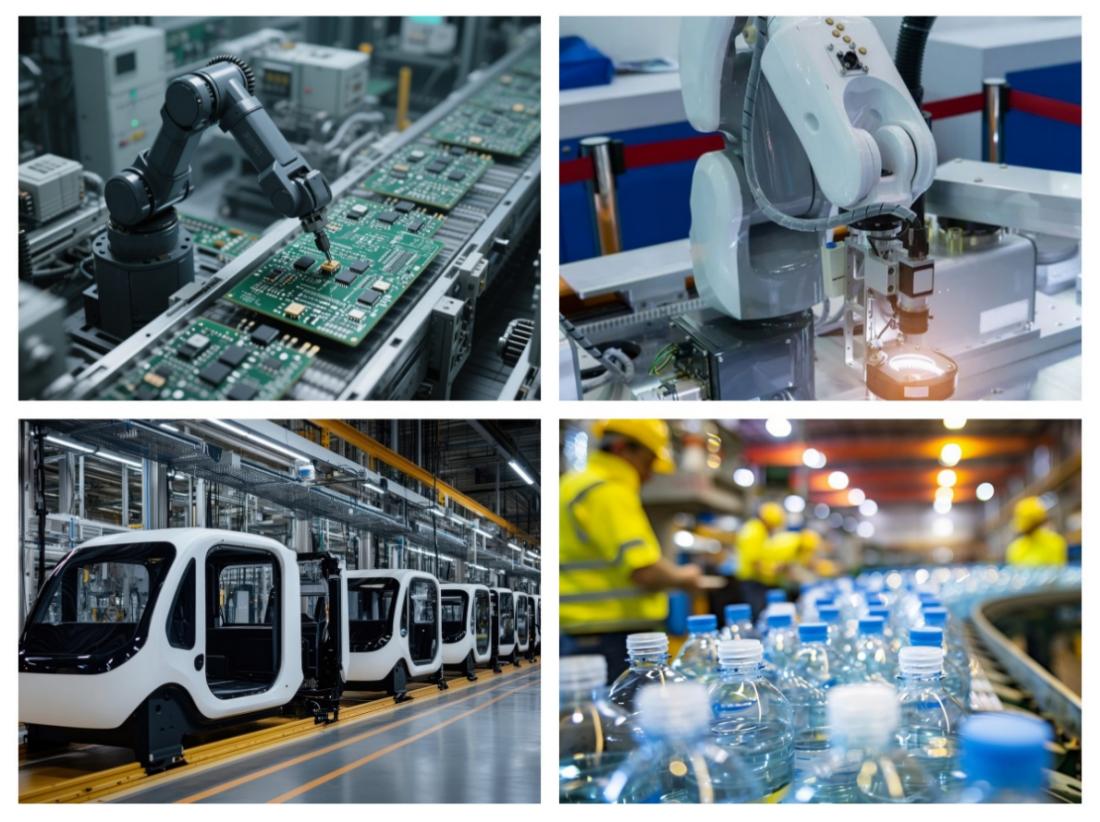

M12 fisheye lenses are commonly used in robotic vision systems
3.Quality defect detection
Using the M12 fisheye lens on an automated production line can capture a full-view image of the product at once, enabling simultaneous detection of defects or flaws in items of different shapes, sizes, colors, and materials.
This facilitates quality control during automated assembly and is suitable for surface defect identification of products such as PCB boards and electronic components, improving detection efficiency and reducing missed detections.
4.Smart warehousing and logistics
The wide coverage capability of the M12 fisheye lens is also frequently used in the fields of smart warehousing and logistics. For example, in warehouse management, the panoramic coverage of a fisheye lens helps track the location of goods in real time; installing a fisheye lens above a logistics sorting area or conveyor belt can simultaneously identify the barcodes of multiple packages or monitor their flow, improving logistics efficiency.

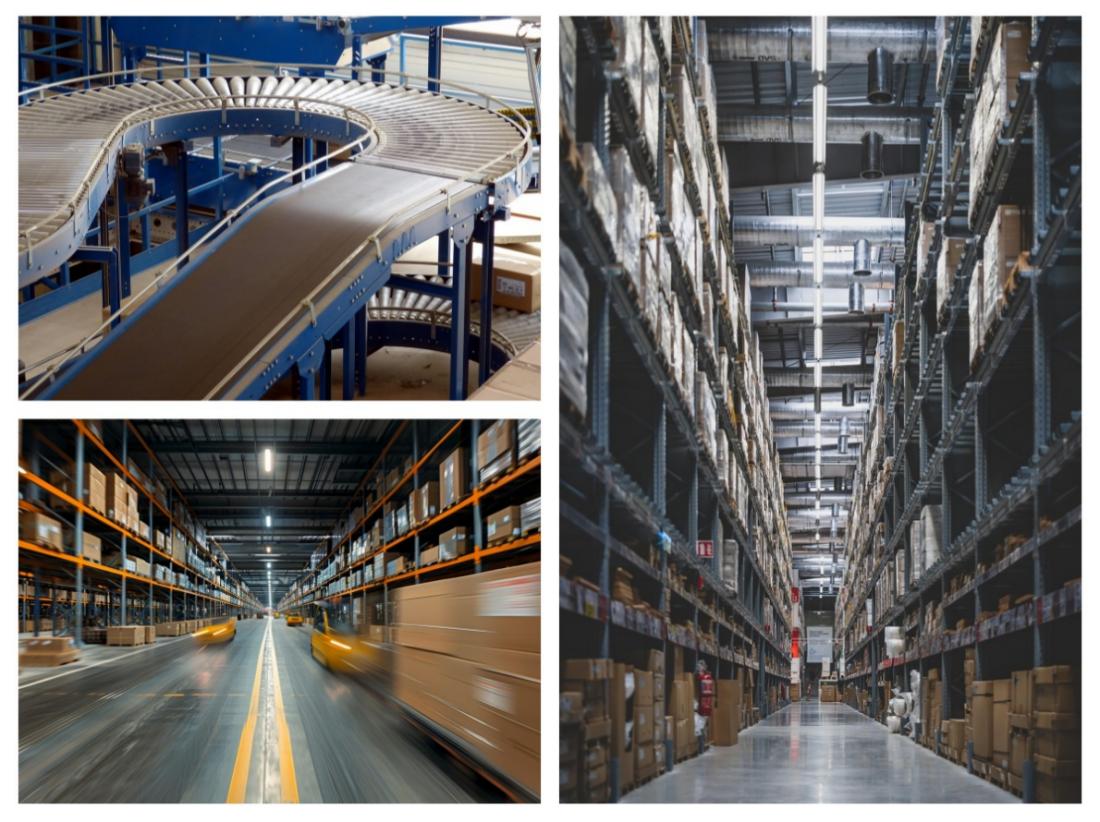

M12 fisheye lenses are commonly used in smart warehousing and logistics
5.Special scene monitoring
The M12 fisheye lens is compact in size, yet possesses a wide field of view for close-range detection. It can acquire complete images of objects even at extremely close working distances, making it suitable for installation inside confined or complex special equipment, providing a panoramic view.
In conclusion, the M12 fisheye lens can significantly improve monitoring efficiency and quality inspection accuracy in automated production lines, reduce blind spots, and is an important vision component for achieving efficient and intelligent production, providing significant support for industrial automation.
Final Thoughts:
ChuangAn has carried out the preliminary design and production of fisheye lenses, which are widely used in various fields. If you are interested in or have needs for fisheye lenses, please contact us as soon as possible.
