The lens CH3580 (model) independently developed by Chuang’An Optics is a C-mount fisheye lens with a focal length of 3.5mm, which is a specially designed lens. This lens adopts a C interface design, which is relatively versatile and compatible with many types of cameras and devices, making it easy to use and replace.
The short focal length design of 3.5mm allows the lens to capture a wider field of view and handle a larger amount of information.
At the same time, this lens also has the unique distortion effect of a fisheye lens, which can be applied in panoramic photography, monitoring, real estate display, virtual reality (VR) and other application fields. It can also be widely used in scientific research, aerospace, machine vision, automation and other fields to capture and analyze the shape, size, position, motion and other information of objects.

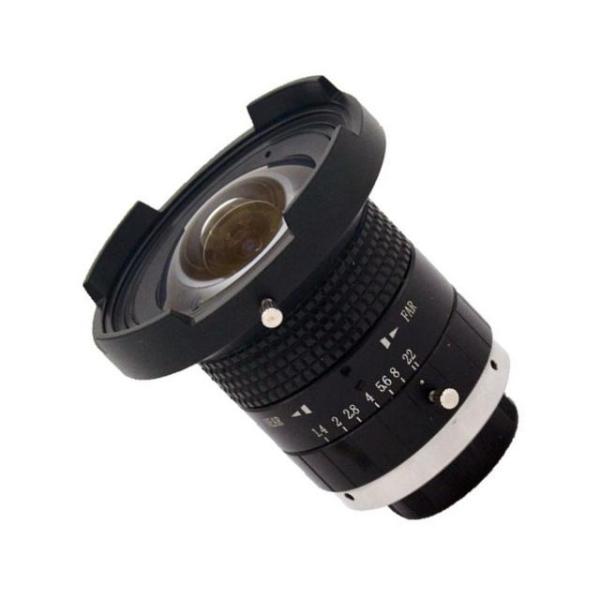

C-mount 3.5mm fisheye lens
At present, CH3580 is widely used in automated inspection fields such as vehicle inspection, which can effectively improve the efficiency and safety of inspection.
For example, in vehicle chassis inspection, the C-mount 3.5mm focal length fisheye lens can provide a large field of view and unique visual effects due to its short focal length and wide viewing angle characteristics, allowing the operator to obtain a wider range of perspectives and more comprehensive detection results.
The main applications of CH3580 in vehicle inspection are as follows:
Comprehensive inspection of vehicle chassis
Due to the wide viewing angle of the fisheye lens, it can cover most of the area of the vehicle chassis at once, which is much more efficient than traditional inspection methods. At the same time, the distortion effect of the fisheye lens allows us to observe the condition of the chassis from different angles, and has a higher detection rate for some potential problems.
Monitoring security checks
On automated vehicle inspection lines, fisheye lenses are used as monitoring devices. By observing the condition of the vehicle chassis in real-time, potential safety hazards can be identified earlier and the likelihood of accidents can be reduced.
Inspect areas that are difficult to observe
For areas that are difficult to observe directly, such as the depth of the vehicle’s chassis, normal inspection methods may not be able to achieve this, but the short focal length and large viewing angle of the fisheye lens can solve this problem. Simply insert the equipment with the lens into the area to be inspected, and you can clearly see the condition inside.
Chuang’An Optics has been focusing on the research and development of fisheye lenses since 2013, and nearly a hundred types of fisheye lenses have been launched to date. In addition to existing products, Chuang’An can also customize according to specific chip solutions for customers.
The existing products are mainly used in security monitoring, visual doorbells, panoramic imaging, driving assistance, industrial testing, forest fire prevention, meteorological monitoring, virtual reality and other fields, with a stable customer base.
