1/1.7″ Machine Vision Lenses

Products

	Model	Sensor Format	Focal Length(mm)	FOV (HVD)	TTL(mm)	IR Filter	Aperture	Mount	Unit Price

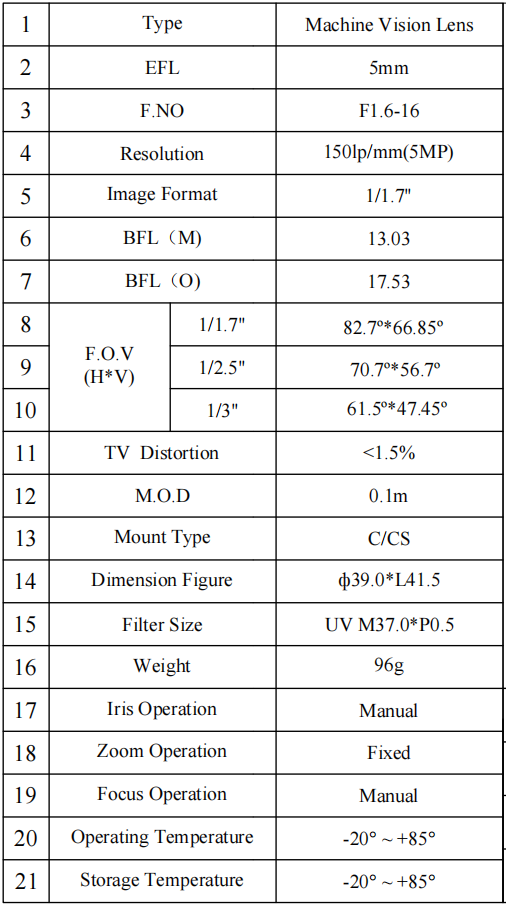

MORE+LESS-	CH619A	1/1.7"	5	82.7º*66.85°	/	/	F1.6-16	C	Request Quote
1/1.7" 5mm 5MP 82.7 Degrees C Mount Machine Vision Lens PDF Drawing

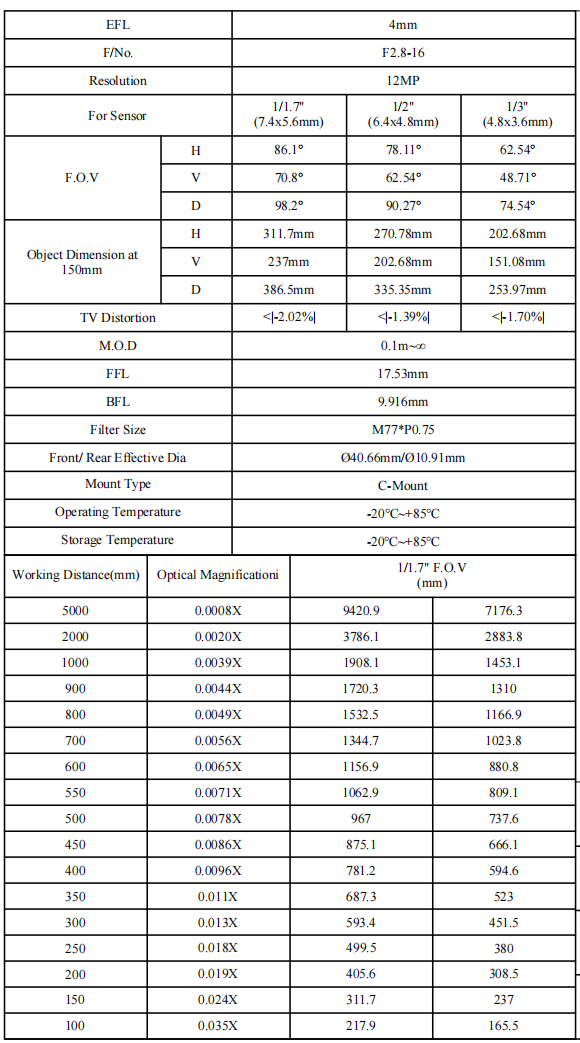

MORE+LESS-	CH669A	1/1.7"	4	86.1º70.8º98.2°	/	/	F2.8-16	C	Request Quote
1/1.7" 4mm 12MP 84.9 Degree C Mount Machine Vision Lens PDF Drawing

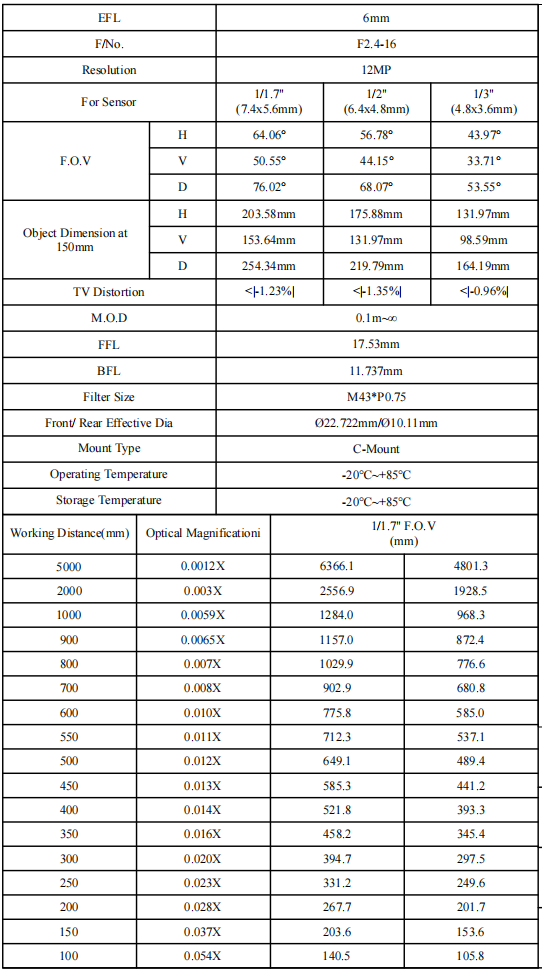

MORE+LESS-	CH670A	1/1.7"	6	64.06º50.55º76.02°	/	/	F2.4-16	C	Request Quote
6mm 12MP 64.19 Degree F2.4-16 C Mount Machine Vision Lens for 1/1.7" Image Sensor PDF Drawing

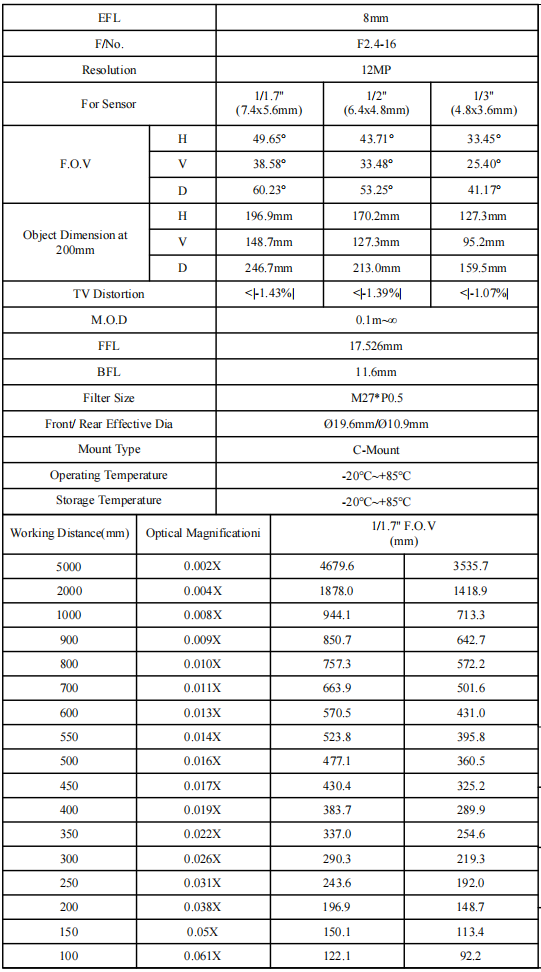

MORE+LESS-	CH671A	1/1.7"	8	49.65º38.58º60.23°	/	/	F2.4-16	C	Request Quote
1/1.7" 8mm 49.7 Degrees C Mount Machine Vision Lens for Industrial Camera PDF Drawing

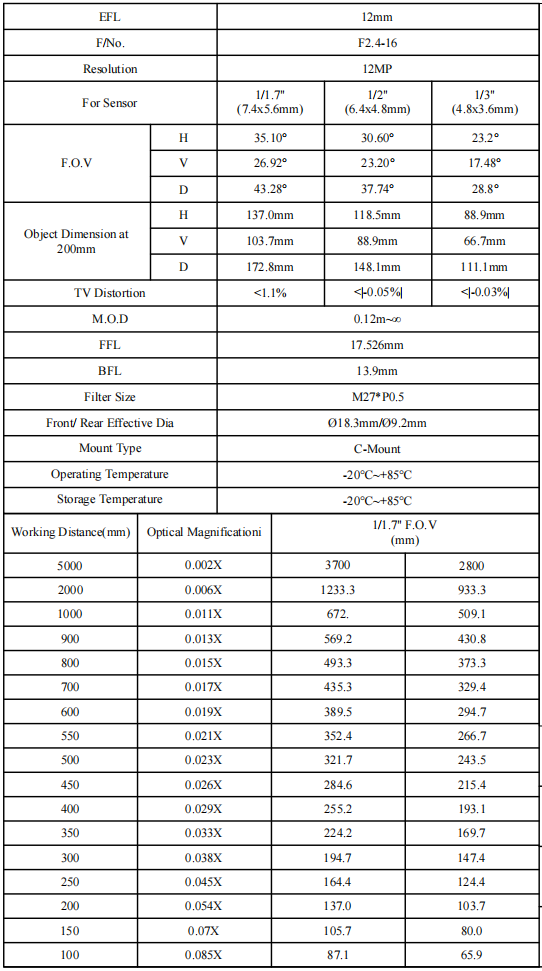

MORE+LESS-	CH672A	1/1.7"	12	35.10º26.92º43.28°	/	/	F2.4-16	C	Request Quote
1/1.7" 12mm 35.1 Degrees 12MP C Mount Industrial Camera Lens for Machine Vision System PDF Drawing
MORE+LESS-	CH673A	1/1.7"	16	25.43º19.3º31.43°	/	/	F2.4-16	C	Request Quote
1/1.7" 16mm 25.5 Degrees 12MP C Mount Machine Vision Lens PDF Drawing

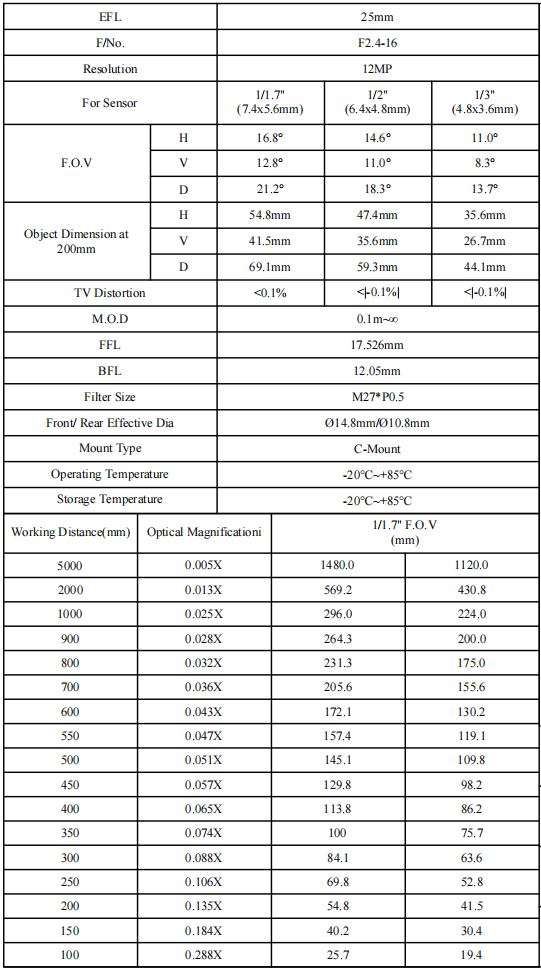

MORE+LESS-	CH674A	1/1.7"	25	16.8º12.8º21.2°	/	/	F2.4-16	C	Request Quote
25mm 16.8 Degrees C Mount Machine Vision Lens with 1/1.7" Image Sensor for Industrial Camera PDF Drawing

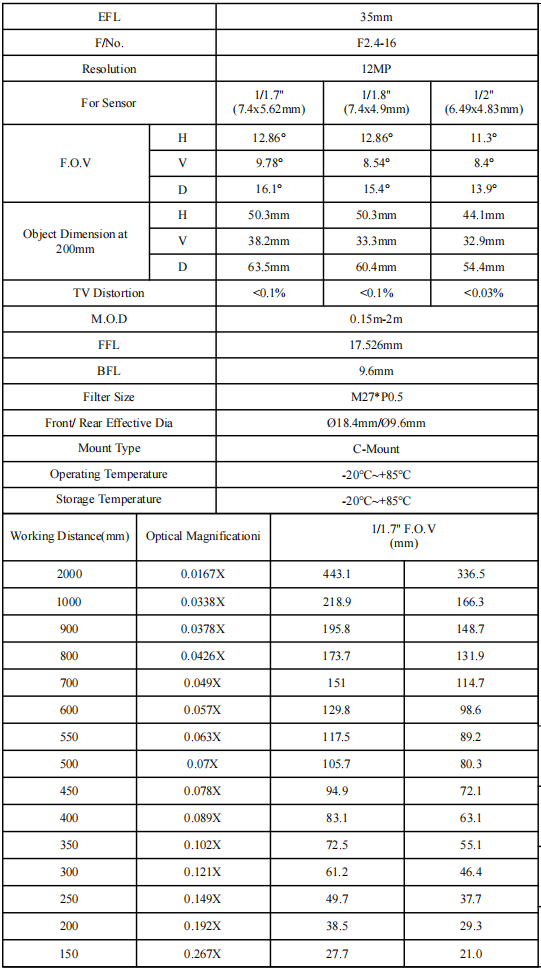

MORE+LESS-	CH675A	1/1.7"	35	12.86º9.78º16.1°	/	/	F2.4-16	C	Request Quote
1/1.7" 35mm 12.8 Degrees 12MP C Mount Machine Vision Lens for Industrial Camera PDF Drawing

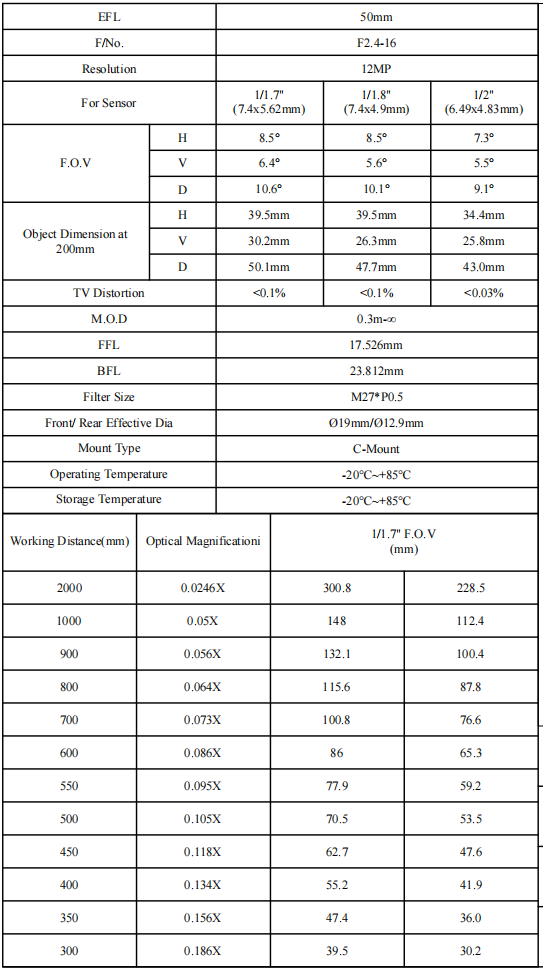

MORE+LESS-	CH676A	1/1.7"	50	8.5º6.4º10.6°	/	/	F2.4-16	C	Request Quote
1/1.7" 50mm 8.5 Degrees 12MP C Mount Industrial Camera Lens PDF Drawing
