In machine vision systems, industrial macro lenses play a crucial “eye” role, enabling high-magnification imaging within extremely short working distances to achieve precise detection and recognition, providing a precise data foundation for subsequent analysis by the machine vision system.
Industrial macro lenses play a crucial role in machine vision, primarily in the following aspects:
1.High-resolution imaging
Industrial macro lenses can reveal details that ordinary industrial lenses cannot distinguish, providing clear imaging of tiny objects and high-resolution images. This allows machine vision systems to capture minute features and details of objects, such as the circuit texture of semiconductor chips and tiny scratches on metal surfaces.
2.Low distortion restoration to ensure image quality
Industrial macro lenses, through special optical design, possess excellent optical performance, such as low distortion and low aberration, which reduces image deformation and ensures the accurate and reliable geometric information of objects, including their size and shape, providing a precise basis for subsequent dimensional measurements.
In the inspection of precision mechanical parts, accurate images are crucial for determining the dimensional accuracy and surface defects of the parts. The high-quality imaging of industrial macro lenses ensures that machine vision systems make correct judgments.
The low distortion performance of industrial macro lenses ensures image quality
3.Precision dimensional measurement
Industrial macro lenses possess precise magnification and stable imaging characteristics, enabling high-precision two-dimensional measurements. They allow for non-contact measurement of the length, width, aperture, and spacing of minute parts, achieving micrometer-level accuracy.
This forms the basis for software to perform pixel-level size calculations. Examples include measuring lens dimensions in mobile phone camera modules, the dimensions of minute parts, and the pin spacing of electronic components.
4.Accurately identify fine features
For objects with fine structures or patterns, industrial macro lenses can clearly distinguish these features, such as laser markings on chips or anti-counterfeiting patterns on product surfaces. Macro lenses can ensure the integrity of feature information so that machine vision systems can identify and analyze them, thereby improving the success rate.

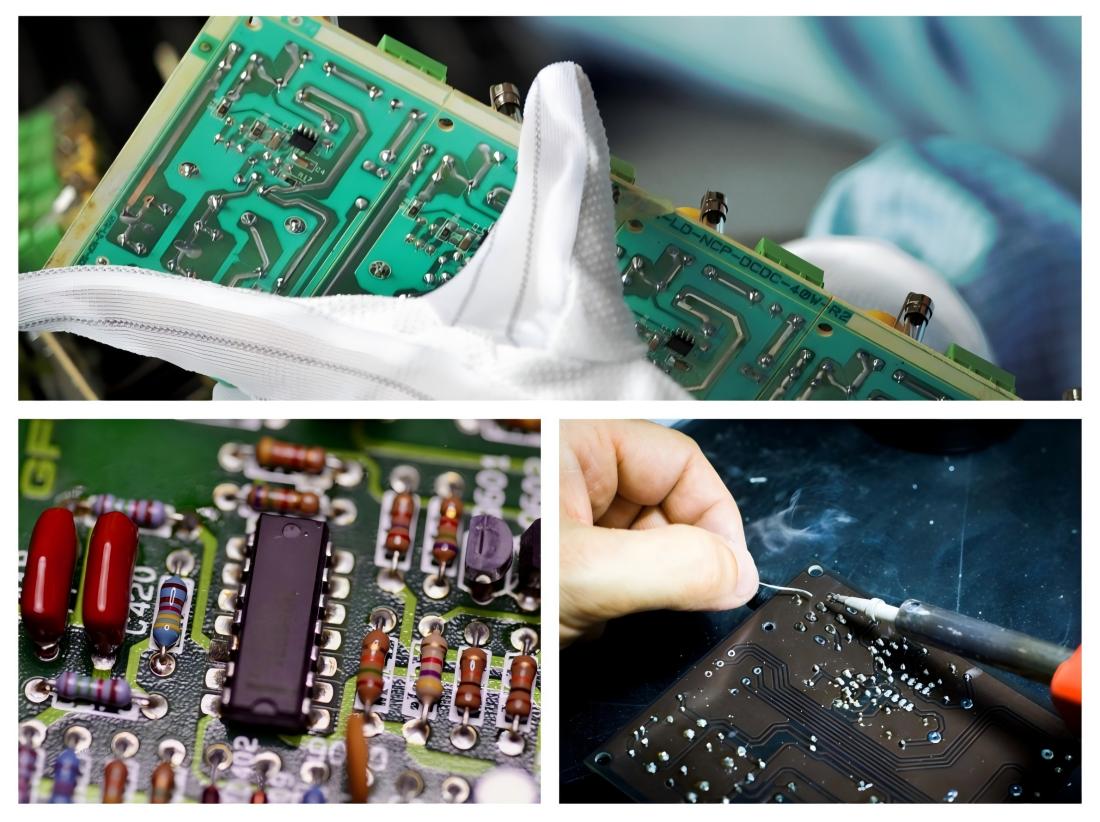

For example, when inspecting printed circuit boards, industrial macro lenses provide sufficient detail, allowing machine vision systems to accurately determine whether tiny solder joints on the circuit board are full or whether there are short circuits.
Industrial macro lenses can accurately identify fine features
5.Micro-defect detection
Industrial macro lenses can clearly magnify minute defects on product surfaces, helping machine vision systems detect these defects, such as scratches, cracks, and holes. In automotive parts manufacturing, industrial macro lenses can detect minute cracks on the surface of engine blocks. These cracks can affect engine performance and reliability; timely detection and handling of these defects can improve product quality and reduce the defect rate.
Furthermore, on automated production lines, industrial macro lenses can help machine vision systems quickly and accurately locate the position of target objects, enabling precise alignment.
In summary, industrial macro lenses are an indispensable optical core in machine vision systems. They help systems capture minute features at extremely close distances, significantly improving the accuracy and reliability of detection, measurement, and identification. They are widely used in high-precision inspection scenarios such as plastic parts, metal parts, and electronic components.
