The M8 lens is a miniature lens with a thread diameter of 8mm. With its compact size and relatively balanced performance, it has a wide range of applications in the field of miniature imaging, especially in embedded imaging and industrial vision.
What are the key features of M8 lenses?
1.Ultra-compact and lightweight
The M8 lens features a mounting diameter of just 8mm and a compact, lightweight design—often weighing only a few grams—making it ideal for integration into space-constrained devices such as smart locks, mobile phones, and micro-robots, as it occupies virtually no installation space.
2.Compatible with small sensors
Due to their smaller size, M8 lenses are typically used with smaller image sensors. For example, it is mainly compatible with small-sized CMOS/CCDs such as 1/4 inch, 1/5 inch, and 1/6 inch, and is generally compatible with sensors up to 1/2.5 inch.
3.Extremely short focal length and large field of view
M8 lenses feature extremely short focal lengths—ranging from 0.76 mm to 3.3 mm—and a diagonal field of view of up to 120°–210°, delivering ultra-wide-angle or fisheye effects that enable panoramic imaging.

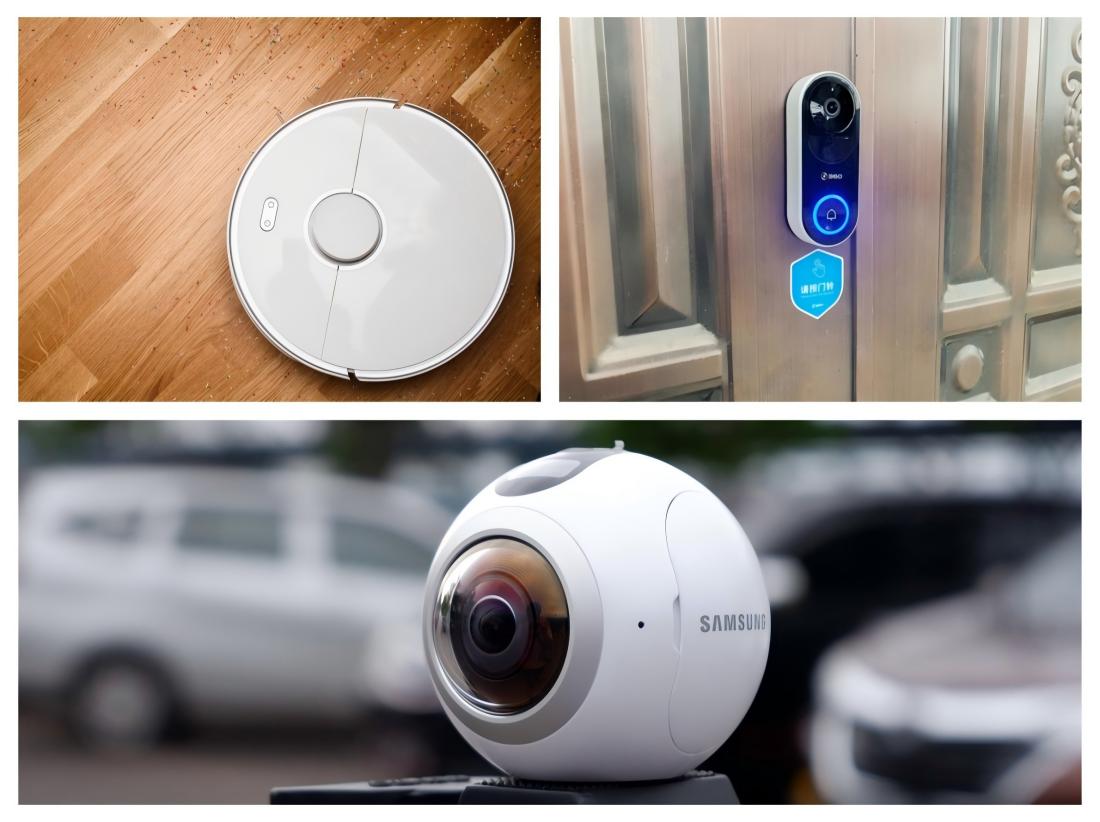

The M8 lens features a short focal length and a wide angle of view
4.Low distortion design
The M8 lens has a simple optical structure, good edge distortion control, and is resistant to vibration and high and low temperatures, making it suitable for embedded devices and high-precision measurement and positioning.
5.Primarily fixed aperture and fixed focal length
Most M8 lenses feature a fixed focal length and fixed aperture design (typically F2.0–F5.6); lacking complex mechanical adjustment mechanisms, they are compact, cost-effective, and highly reliable, making them well-suited for mass-produced devices.
6.Standardized threaded mount
M8 lenses feature a metric thread with an 8mm diameter; common thread pitch specifications include P0.2, P0.35, and P0.5. It is important to verify the thread pitch before purchase and use to ensure a perfect match with the camera module.

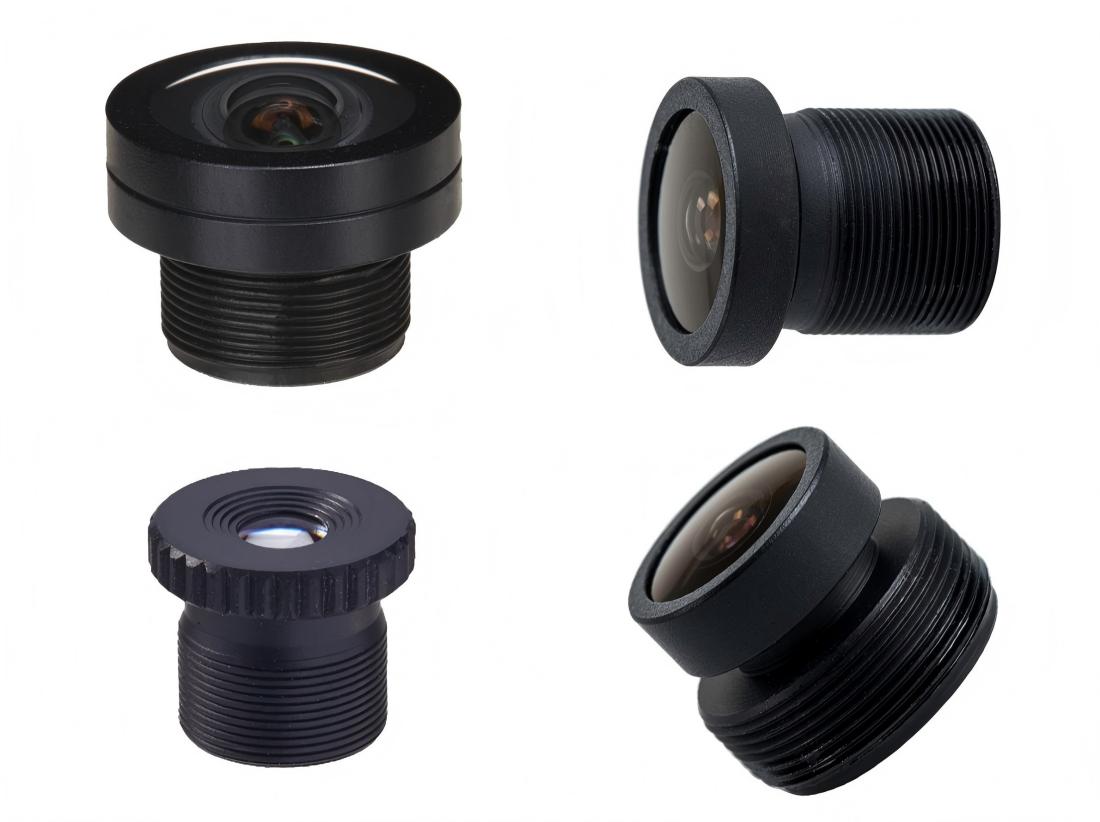

The M8 lens utilizes a standardized threaded mount
Main application scenarios of M8 lenses
1.Compact security and surveillance
The M8 lens features a compact size, making it suitable for a wide range of space-constrained surveillance devices, such as small home cameras, body-worn cameras, video doorbells, and elevator monitoring systems. In security applications, the M8 lens enables surveillance devices to be as small as a matchbox, facilitating covert installation.
2.Industrial embedded vision
M8 lenses are commonly used in miniature industrial cameras and integrated into industrial equipment, such as industrial robotic arms, barcode scanners, industrial endoscopes, and industrial code readers, for visual recognition, barcode scanning, and product inspection on production lines.
Offering high resolution and a deep depth of field while ensuring sharp edge-to-edge image quality, M8 lenses are widely applied in industrial automation systems.

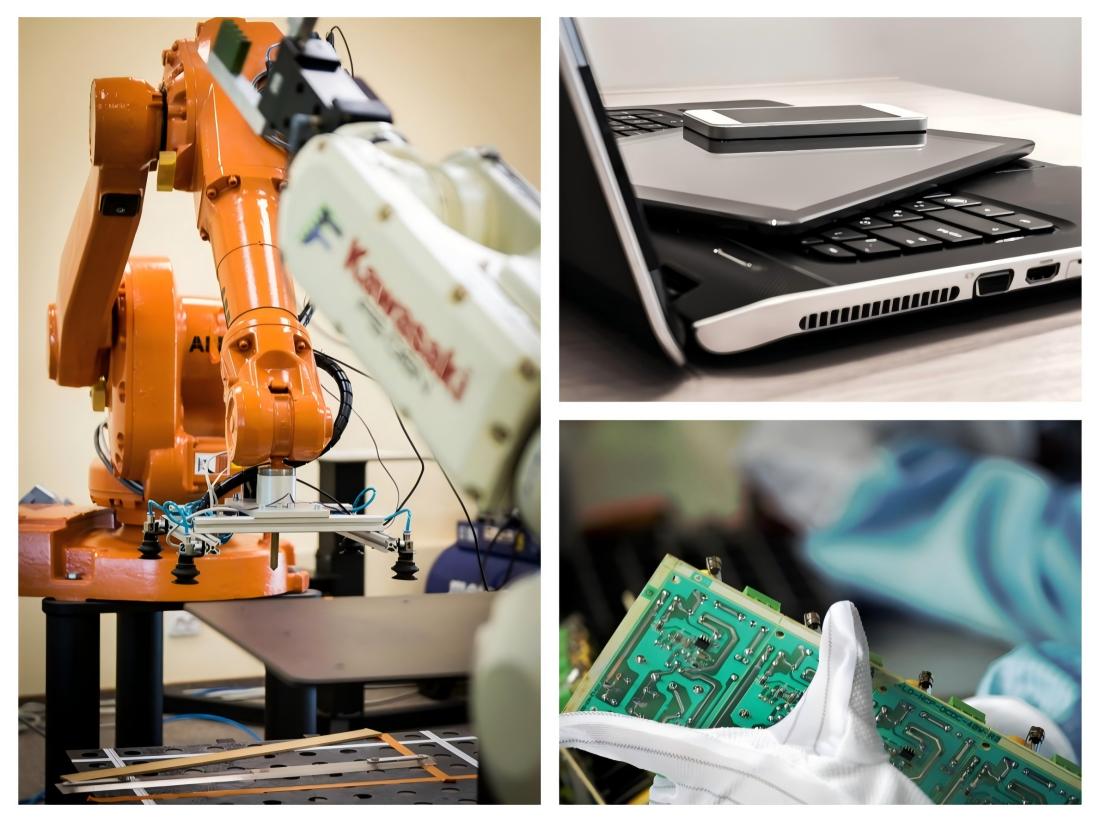

M8 lenses are commonly used in industrial equipment
3.Medical equipment
M8 lenses are also an important component of many small medical imaging devices, and are commonly used in miniature imaging systems such as endoscope probes, minimally invasive surgical instruments, fingerprint acquisition, and iris recognition.
For example, in minimally invasive surgical instruments, the miniaturized M8 lens can be inserted into the human body through a catheter, transmitting clear images of internal organs to a screen to guide the doctor.
4.Drones
For micro-drones, the compact and lightweight M8 lens offers the advantage of low weight; it delivers clear aerial imagery without significantly increasing the payload, while simultaneously meeting specific requirements for wide-angle views or close-range inspections.

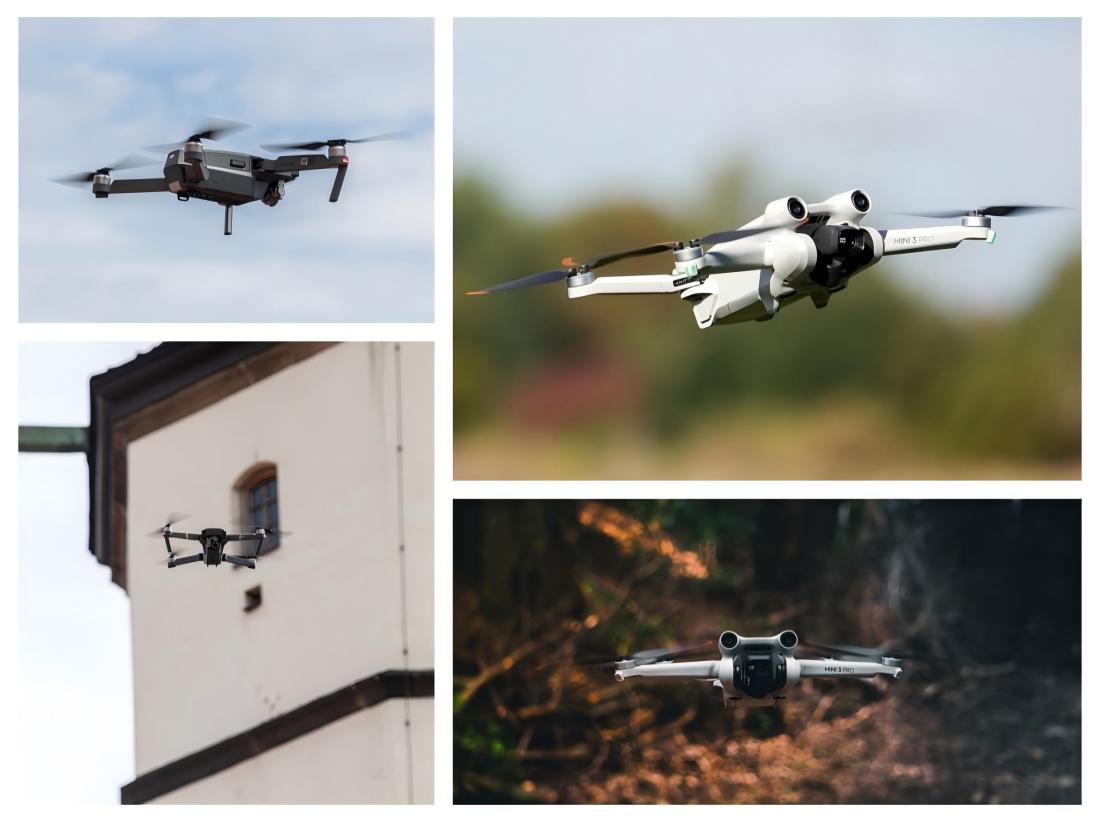

M8 lenses are also commonly used in micro-drones
5.Automotive electronic systems
M8 lenses are also commonly used in automotive electronic systems, such as dashcams, 360° surround view systems, in-vehicle monitoring, and electronic rearview mirrors.
Wide angle or fisheye lenses with the M8 mount can be easily mounted at the front, rear, and sides of the vehicle, helping to eliminate blind spots and facilitate the implementation of panoramic surround-view systems.
Furthermore, the compact size of M8 lenses allows for flexible placement both inside and outside the vehicle without compromising its aesthetic appeal.
In addition, M8 lenses are also commonly used in devices such as smart access control systems and time and attendance terminals for applications like facial recognition.
In summary, as a miniature optical solution, the M8 lens strikes an excellent balance between performance and size, serving as a key component for achieving device miniaturization and intelligence across various fields.
