Focal length is one of the core parameters of CCTV lenses, which essentially determines the field of view and the clarity of details in the image. Simply put, a shorter focal length brings the image closer while providing a wider field of view, whereas a longer focal length captures more distant scenes but results in a narrower field of view.
1.The impact of the focal length of a CCTV lens on the image
Overall, the focal length of a CCTV lens affects the image in the following key ways:
1)Field of view
The field of view is the range of the visible image. A shorter focal length means a wider field of view, covering a larger area, which is suitable for small spaces or scenarios that require panoramic monitoring. A longer focal length means a narrower field of view, which can zoom in on the image and see details of distant objects, but the coverage area is smaller.
2)Monitoring distance and detail clarity
At a fixed monitoring distance, a shorter focal length provides a wider field of view but results in less detail, whereas a longer focal length offers a narrower field of view but yields sharper detail.
Therefore, using a short focal length lens results in clear close-up images, but makes it difficult to discern details of distant objects; using a long focal length lens allows for clear capture of details of distant targets, but affects the field of view at close range.

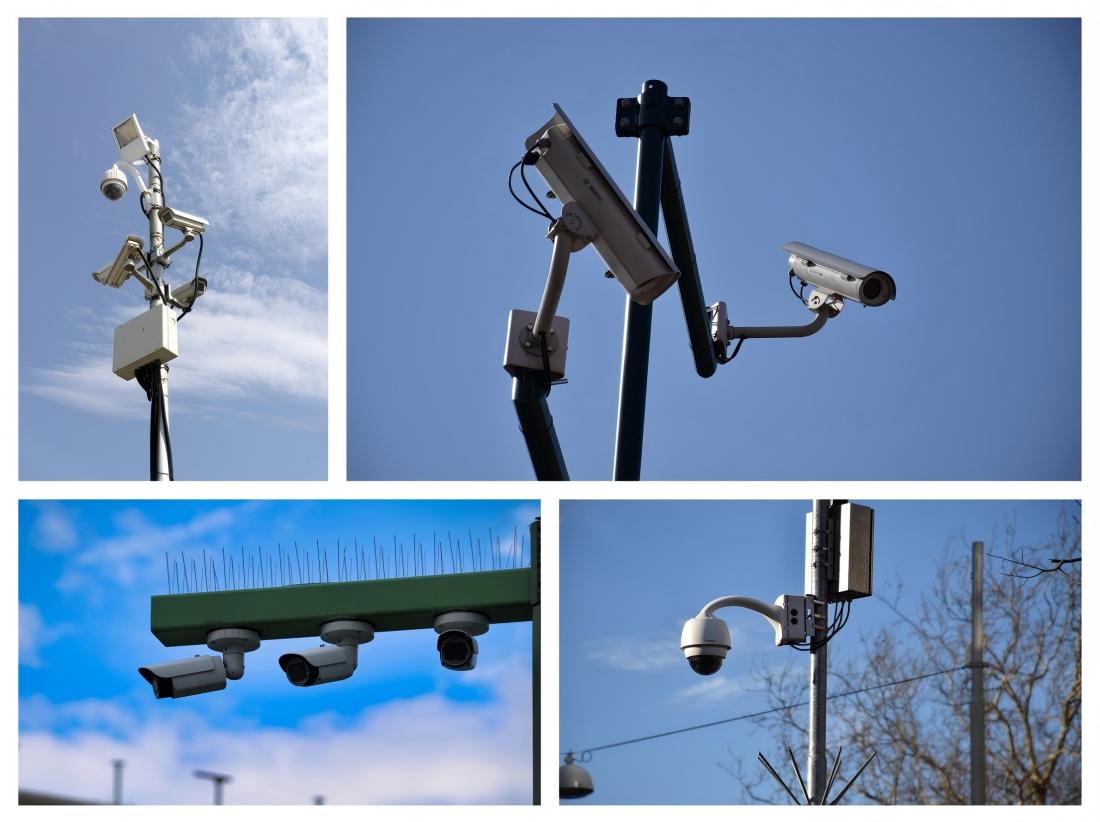

The impact of CCTV lens focal length on image quality
3)Depth of field
Depth of field refers to the clarity of the background in an image, and it is inversely proportional to focal length. Short focal length lenses have a large depth of field, so objects in the image, from near to far, are relatively clear; long focal length lenses have a small depth of field, require more precise focusing, and blur the background, making it easier to highlight the subject.
4)Image distortion
CCTV lenses with different focal lengths are also subject to the effects of distortion. For example, short focal length lenses are prone to barrel distortion, making objects appear stretched and somewhat distorted; long focal length lenses have relatively less distortion, resulting in a more natural perspective effect in the image.
2.Image characteristics of CCTV lenses at different focal lengths
Let’s take a closer look at the image characteristics and application scenarios of CCTV lenses with different focal lengths:
1)Short focal length lens (2.8–4mm)
Short focal length lenses (wide-angle) have a wide field of view, covering a large area, making them suitable for close-range monitoring.
Image characteristics: It can capture more objects and people in the same frame; distant objects are very small and details are not clear; there is a slight distortion at the edges of the image.
Common scenarios: Indoor lobbies, elevators, corridors, shops, stairwells.

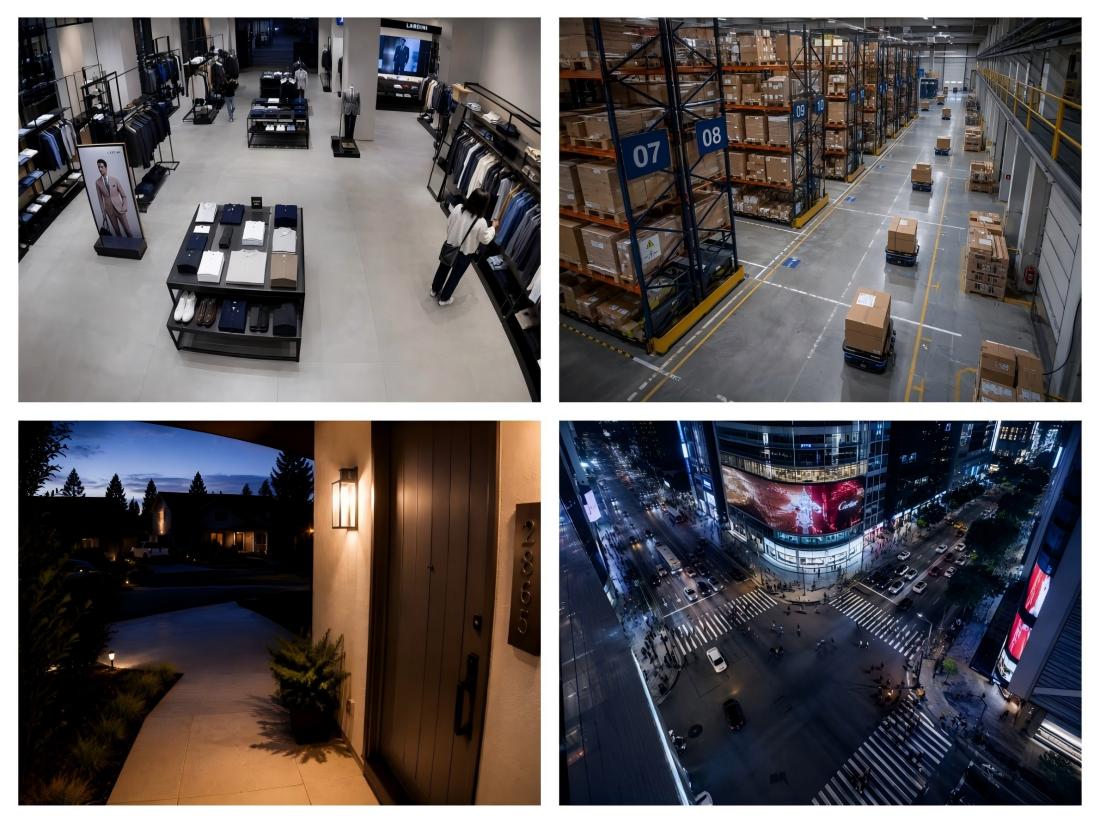

Short focal length lenses are suitable for close-range monitoring
2)Medium focal length lens (6–8 mm)
Medium focal length lenses have a relatively standard field of view and are suitable for medium-distance monitoring.
Image characteristics: Less image distortion, more natural object proportions; the monitoring range at close range is not as large as that of a wide-angle lens, but distant targets are larger, and faces and license plates are easier to see compared to a focal length lens.
Common scenarios: Residential passageways, parking lot entrances and exits, warehouses, store entrances, and factory passageways.
3)Long focal length lenses (12–25mm and above)
Long focal length lenses have a narrower field of view and can monitor a smaller area, similar to the effect of a telescope, making them suitable for long-distance monitoring.
Image characteristics: It can magnify distant objects, and distant faces and license plates can be seen relatively clearly; the field of view it can capture is very small, and the target will be lost if there is a slight deviation; it has high requirements for the installation position, and vibration can easily cause the image to shake.
Common scenarios: Highway entrances/exits, long-range entry/exit points, remote areas of parking lots, and perimeter fencing.

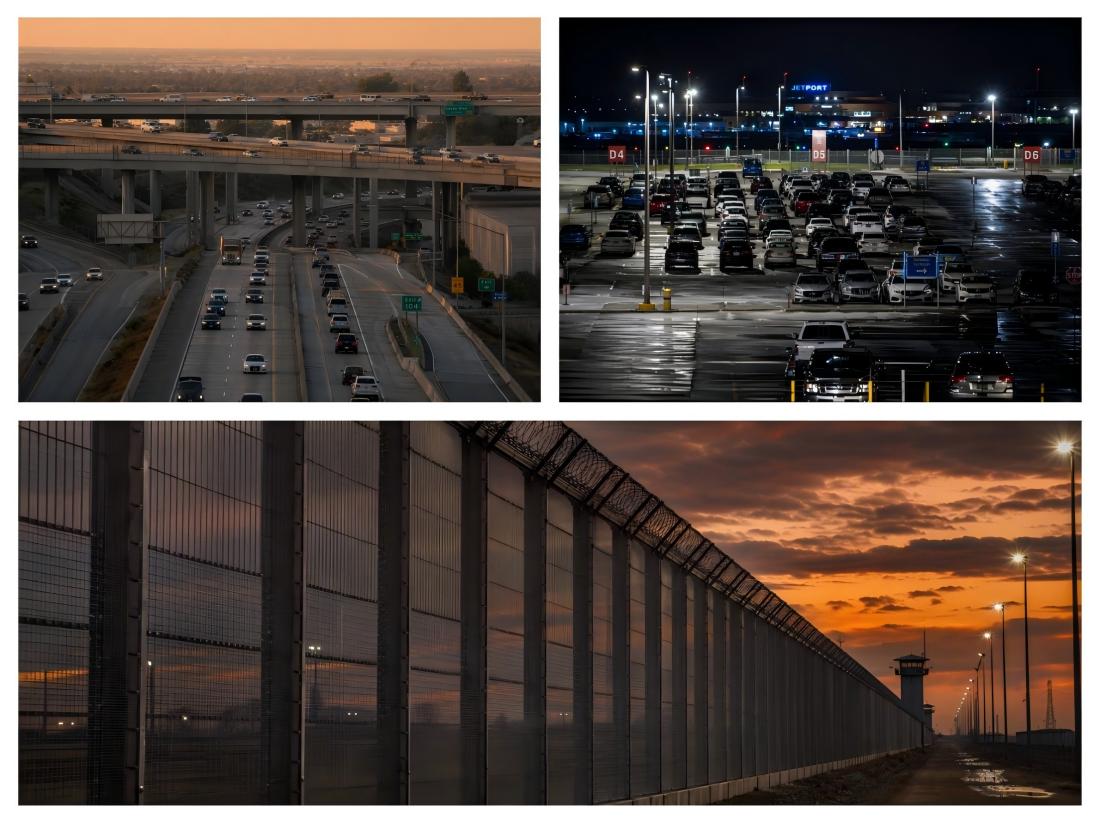

Long focal length lenses are suitable for long-distance monitoring
3.Recommendations for selecting the focal length of CCTV lenses
1)If you need to see a panoramic view or a wider area, such as a hall, small rooms, or warehouse, choose a short focal length lens, generally between 2.8mm and 4mm.
2)If you need to see details at a distance, such as recognizing license plates, faces, or monitoring areas more than 20 meters away, you can choose a longer focal length lens, generally 8mm or more.
3)For monitoring scenarios where the distance is uncertain and a balance between wide coverage and fine detail is required, consider a varifocal lens with a flexible focal length range, such as 2.8–12mm.
In short, once you understand the relationship between focal length and image quality, you can choose the appropriate lens based on the specific application scenario (such as monitoring range, distance, detail requirements, etc.).
